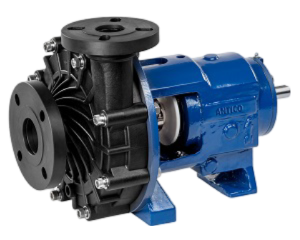

Non Metalic Mechanical Seal Pump
NZ Series long-coupled thermoplastic mechanical seal process pump provides the most economical, combinatorial design which simplifies maintenance, reduces inventory, is able to give a near constant head for a wide flow range. NZ pumps are injection moulded, horizontal, side discharge, back pull-out, volute casing type, single stage, end suction centrifugal pumps. MOC: GFPP | CFRPVDF
|
|
||
|---|---|---|
|
Operating Frequency
|
50 Hz
|
60 Hz
|
|
Capacity [Q] up to
|
40 m3 /hr (176 US gpm)
|
220 US gpm (50 m2 /hr)
|
|
Head [H] up to
|
38 m (125 ft)
|
176 ft (54 m)
|
|
Motor Power [P] up to
|
15 kW (20 hp)
|
25 hp (18.5 kW)
|
|
Viscosity up to
|
150 mPas (cP)
|
|
|
Suction Lift
|
8 m (26 ft) with priming chamber*
|
|
|
Maximum Working Pressure
|
10 bar (145 psi)
|
|
|
Maximum Specific Gravity [SG]
|
1.8 - 3
|
|
|
Minimum Continuous Flow [MCF]
|
2.5 m3 /hr (11 US gpm)
|
|
|
Maximum Temperature
|
PP-H : 82°C (180°F), GFRPP : 90°C (194°F), PVDF : 104°C (220°F), ETFE : 121°C (250°F)
|
|
|
Suction & Delivery Connection
|
ANSI B16.5 - Class 150, DIN 2501, BS4504 - PN16, BSP or NPT*
|
|
|
Shaft Seal
|
Single (TB/RA) & Double (DROTT) Mechanical Seals
|
|
|
Bearings
|
Rolling Element Bearings
|
|
|
Lubrication
|
Grease / Oil
|
|
|
Motor Compatibility
|
IS 1231, IEC 72-1, NEMA*
|
